• Phiaton Bridge MS 500
  • Phiaton's upgraded M-Series looks just as good as it sounds.

Phiaton Bridge MS 500 Review

$299.99
6.4
  • 0
  • 10
Better than 65% of Reviewed Headphones

Under The Hood

Our laboratory testing process utilizes state-of-the-art audio generating and sampling equipment to test every aspect of a speaker's abilities, from frequency response to spectral decay. The Phiaton Bridge MS 500s (MSRP $299) tested with great tracking and almost perfect sound pressure levels, but its frequency response was shy of a gold medal.

In other words—they sound (and look) great at first listen (and glance), but in the long run fail to deliver a brilliant long-term experience.

Frequency Response

A speaker's frequency response refers to a system's measured response to an original signal. The Bridge MS 500's maintain a fairly flat response along the lower frequency range, slightly increasing emphasis on notes from 20Hz (sub-bass) to about 100Hz (bass), before beginning to drop off, following the equal-loudness curve—a response curve aligned to the natural strengths and weaknesses of the human ear.

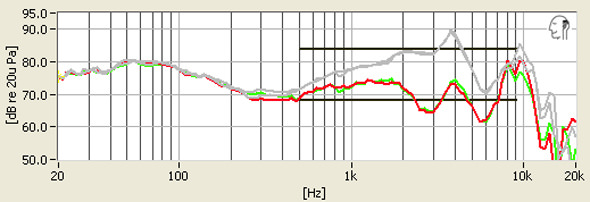

The MS 500s drop in volume at two key points throughout the upper portions of the range, which does certain delicate details in the upper mids and high range a disservice.

The problems begin just after 2kHz, the meat-and-potatoes frequency for piccolo, treble harp notes, and almost all instruments' overtone series. Significant drops in volume around 3kHz and 6kHz mean that details within the high midrange can be more difficult to decipher.

Channel Tracking

Channel tracking refers to the auditory balance between the left and right speakers. Ideally, audio will play at the same volume out of each speaker, but that is not always the case. The Phiaton MS 500s do a great job maintaining an equal tracking balance, however, swaying by very small amounts (about 2dB) across the frequency range and only favoring the right channel heavily after 7kHz.

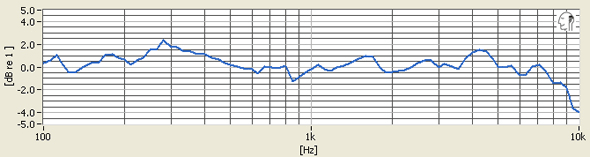

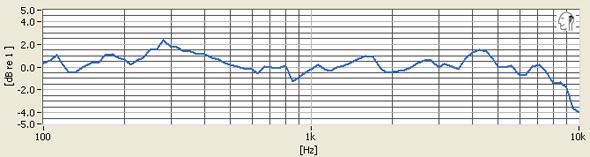

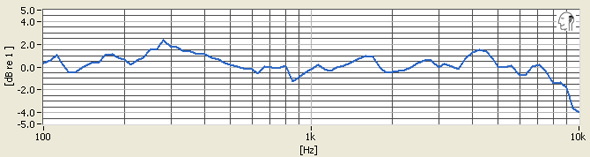

The Bridge MS 500s do a good job maintaining even tracking until after 7kHz, where they favor the right speaker notably.

Attenuation

Attenuation—a headphone's ability to block outside ambient noise—is more important for mobile cans, which these Phiaton on-ears aren't. As the Bridge MS 500s have no active noise cancellation, they only perform about average here. Practically no sub-bass or bass frequencies are blocked out, so things like bus horns and rumbling engines will still be very audible. After about 1kHz, the MS 500's begin to muffle higher-pitched noises, like crying babies. Midrange outside noises are reduced to half their volume, high mids to 1/4th, and really high-pitched junk to a whopping 1/16th.

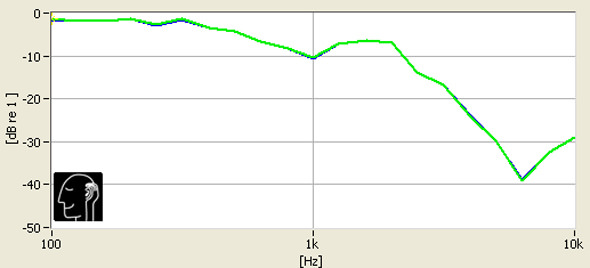

The MS 500's do very little to dampen sub-bass and bass frequencies, but will dampen high midrange sounds by about 40 dB.

Harmonic Distortion

When we discuss harmonic distortion, we're dealing with added noise and clipped harmonics that often hamper music listening. Ideally, we like to see less than 3% total harmonic distortion (THD) present across an entire frequency range. The MS 500s do a good job keeping distortion to a minimum in general, though measures do leap up to almost 10% in the sub-bass range. Luckily human ears aren't sensitive to sub-bass distortion, so this is nothing to worry over. The rest of the frequency response is largely free of significant flaws, so distortion just isn't an issue in general for the MS 500s.

Even loud-music lovers should enjoy largely distortion-free tunes, but if you're unwise enough to venture past 120dB, the distortion will leap right up past 3%. Fortunately, we tested a maximum SPL of 120.12 dB—but you shouldn't be listening to music louder than 100 dB, anyway, lest you risk noise-induced hearing loss.

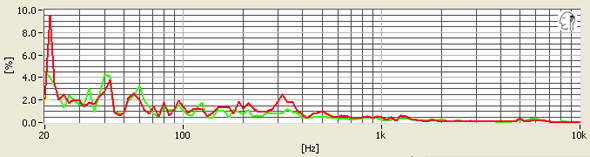

While the MS 500's maintain a very low amount of distortion across most of the frequency range, they do spike to slightly audible levels around 40 and 60Hz.

Other Tests

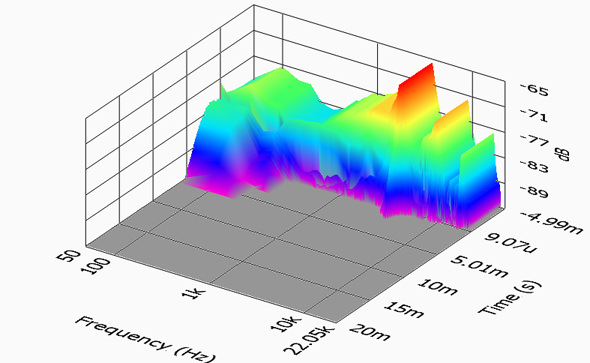

The MS 500's maintain a healthy decay time, with only a small portion of the sub-bass and bass range taking longer than 5ms to fully decay.

Lee Neikirk D5670e2f8889f452b40510c25f2aa9f5?s=48&d=mm
Lee tests and reviews electronics for Reviewed.com. He is an ISF certified calibrator with a primary focus on televisions and computer monitors. Outside of work, Lee is a classically trained guitarist and an ardent gamer.
